Back in the late 1990s, I needed a way to generate test cases for a new
dynamics algorithm I was developing: the divide-and-conquer algorithm.
My solution to this problem was *fractal robots*, which I
defined to be any rigid-body system in which at least one of the following was
fractal: the connectivity, the geometry, or the configuration. Some of
these mechanisms turned out to be quite pretty, as you can see from the
pictures below. (Click on any image to see the full-size version.)

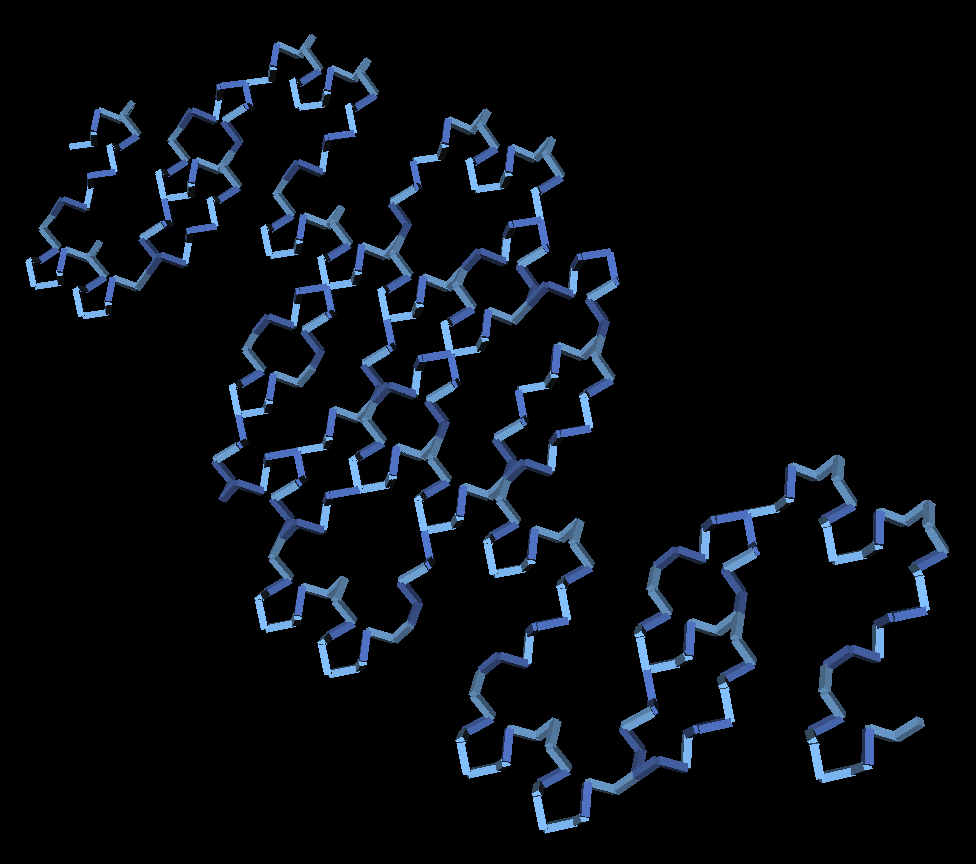

This robot is an unbranched chain consisting of two types of link connected
together by revolute joints. All links have the same length, but one
type has a skew angle (the angle between adjacent joint axes) of
+α, whereas the other has a skew angle of −α (i.e.,
each type is the mirror image of the other). The fractal appears in the
sequence in which these two types of link occur along the chain. Both
the sequence and the value of α are based on the geometry of a
tetrahedron. The pictures above show this robot in two fractal
configurations, the two types of link being drawn in slightly different shades
of blue. Each configuration is defined by two joint angles,
θ_{1} and θ_{2}, which repeat along the length of
the chain in a fractal sequence closely related to the sequence of
links. The only difference between these pictures is the values of
θ_{1} and θ_{2}. This robot is pretty, but
it was never used for dynamics tests.

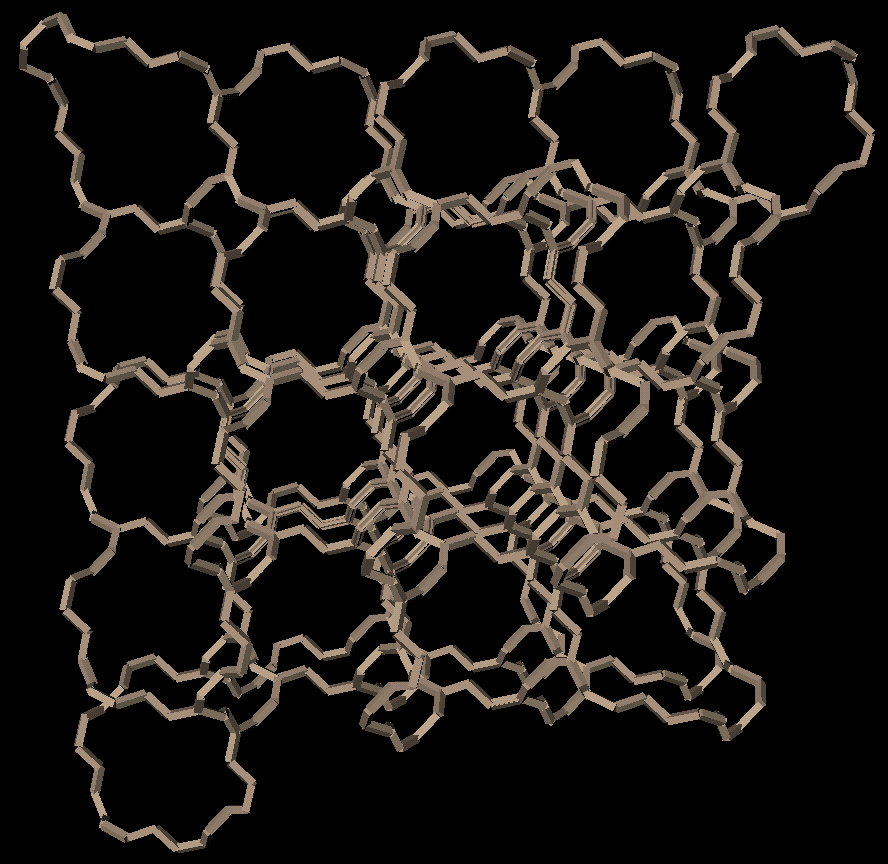

This robot is a simple chain of identical links connected by revolute
joints. Thus, there is nothing about the robot itself that is
fractal. However, the configuration is fractal, and is defined as
follows: let θ_{1} and θ_{2} be the two angles
that define the configuration, then the joint angles are set according to the
sequence θ_{1}, θ_{2}, something,
θ_{1}, θ_{2}, something, θ_{1},
θ_{2}, something, and so on, where the 'something's follow the
exact same pattern (i.e., θ_{1}, θ_{2}, something,
θ_{1}, θ_{2}, something, etc., recursively).

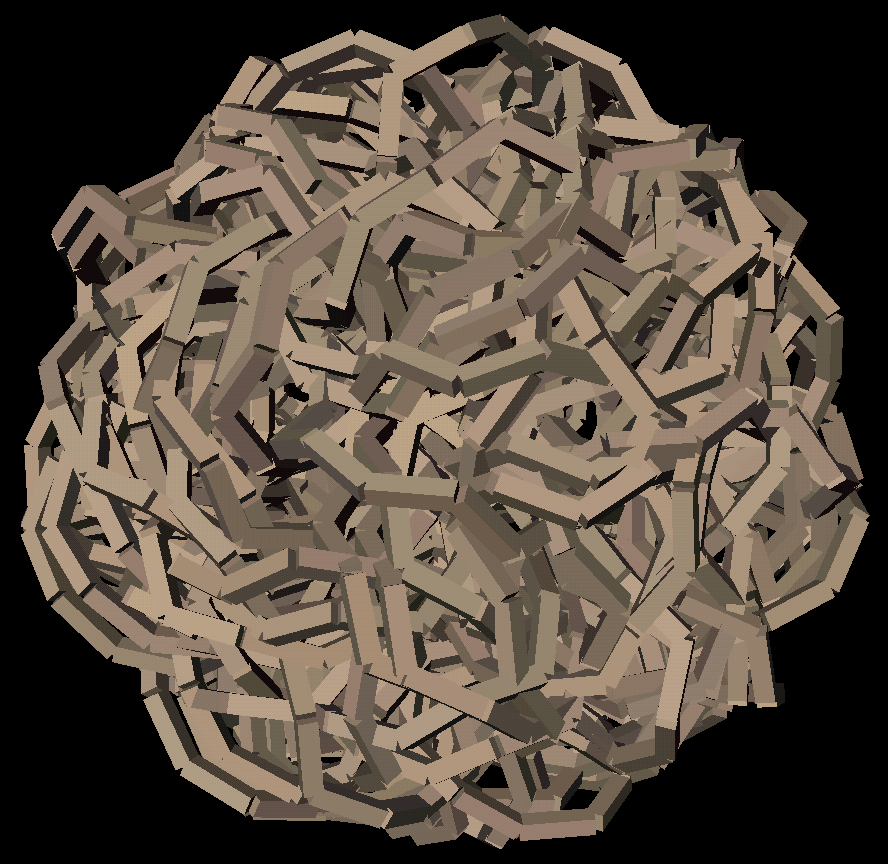

The two pictures above differ only in the values of θ_{1} and
θ_{2}. The ball-shaped configuration gives the robot its
name, and is the configuration used as a test case in
DCA part 2.

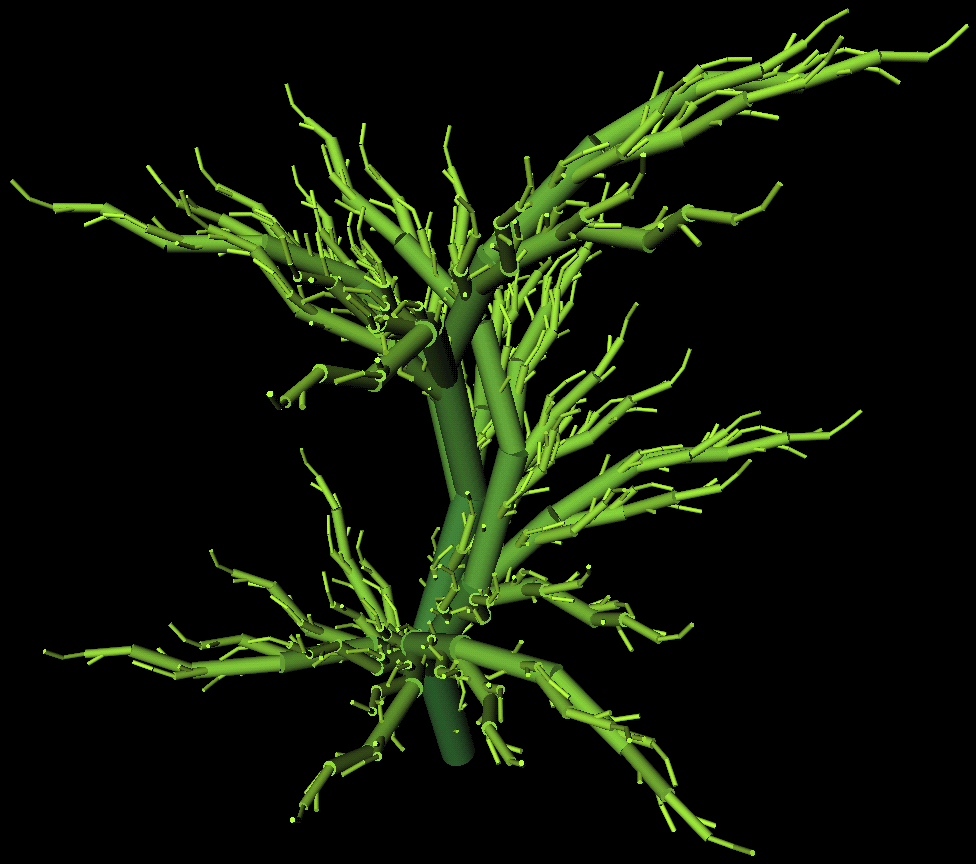

This is a branched tree defined as follows: dill(n,α) is obtained by extending the first link of a dill(n−1,α) to accommodate one more joint, and attaching another dill(n−1,α) to that link via a revolute joint. α is the skew angle between successive joint axes along a link. This mechanism has some interesting properties relevant to the the divide-and-conquer algorithm, and was used as a test case in DCA part 2.

Page last modified: May 2013

Author: Roy Featherstone
