The SMA Loudspeaker

The SMA Loudspeaker

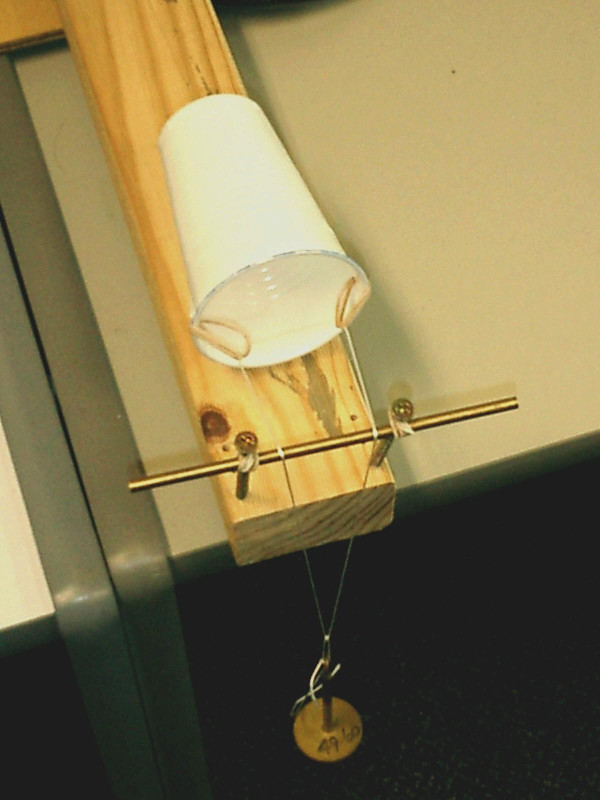

This picture shows our SMA loudspeaker, which consists of a light plastic cup suspended between a 0.1mm SMA (Flexinol) wire, attached to the back of the cup, and a pair of elastic bands, a piece of string and a small weight, attached to the front.  The weight ensures an approximately constant tension on the SMA wire; and the cup does not touch the wooden frame below it.

The SMA is fed a heating current consisting of an audio signal and a DC bias just sufficient to ensure that the current is always positive.  The result is a quiet, but plainly audible, sound.  In particular, frequencies well above 1 kHz can be heard.

Here is an example audio output.

The point of this experiment is to demonstrate that SMA is capable of responding to a change in heating current in less than a millisecond.  Note that the SMA wire is suspended in still air.  There is no air movement near the wire, other than that caused by normal office air conditioning.

How do we know it really is the shape memory effect causing the sound?  See the evidence.
