SMA Actuated Pantograph Robot

Pantograph Robot


This picture shows the complete pantograph robot, and there are two close-up pictures below showing some of the details.  This device is a test rig for our experiments into fast, accurate motion control of SMA actuators.  It features:

  • two antagonistic pairs of 0.1 mm SMA (Flexinol) wires, each pair operating a drive shaft via a pulley;
  • a lightweight pantograph mechanism made from carbon tubes, which serves as a coupled, nonlinear dynamic load for the two actuator pairs to try and control; and
  • high-resolution optical shaft encoders for accurate measurement of drive-shaft motions.

We have used this system to test a new rapid-heating algorithm that doubles the speed of the wires, and we have implemented several different control laws in an effort to find one that produces highly accurate motion.

Here is a movie (9MB) of one of our earlier attempts, which used a relay controller and a phase-lead compensator.  It makes the pantograph tip trace a small square at 1 Hz.  The speed is very good, but the accuracy needs improvement.

We have since implemented a modified proportional controller, which is much more accurate.

back to home page

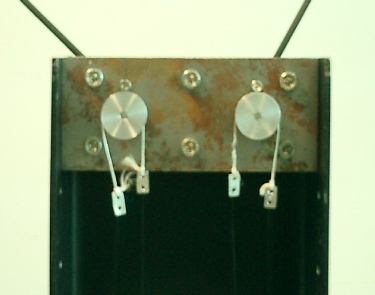

Front view, showing pulleys, chords, eyelets and (barely visible) SMA wires

Rear view, showing optical encoder discs
Front View Showing Pulleys Rear View Showing Encoders
